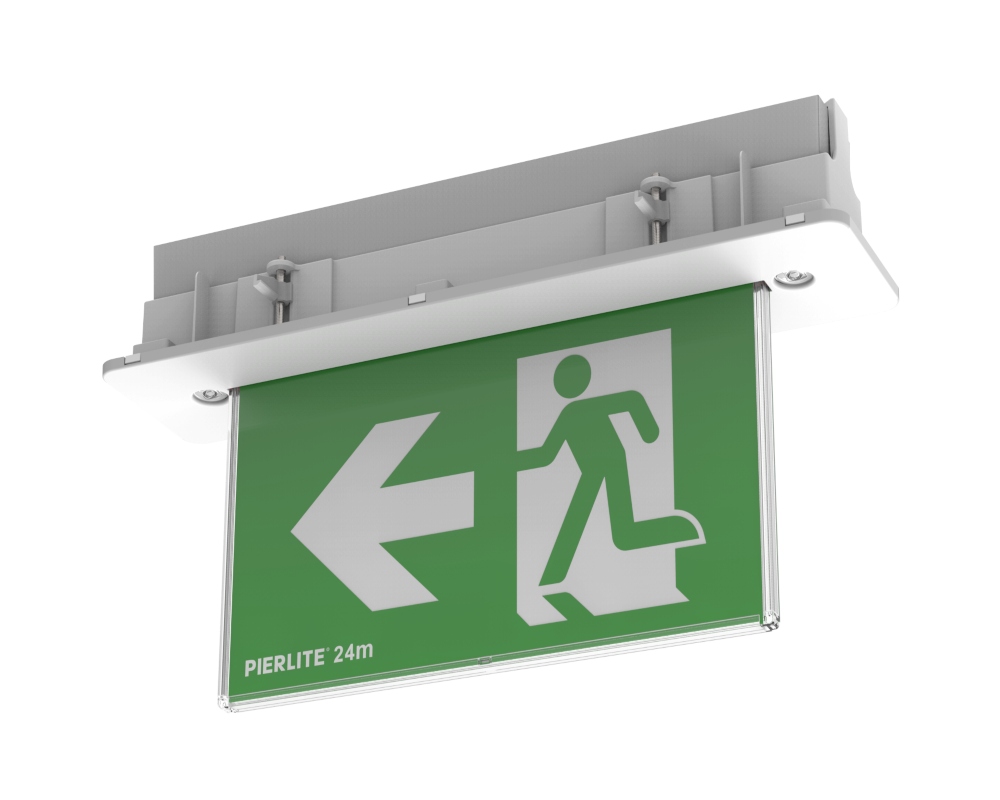

BLADE PRO EXIT LIGHT

PRODUCT FEATURES

• Viewing distance: 24m
• Lumen maintenance: L70 60,000hrs
• Driver: Integral, dual output for combo operation with exit sign and emergency light
• Rating: IP20, Class II
• Operating temperature: 0°C to +40°C
• Housing: Polycarbonate (PC)
• Finishing: White RAL9003
• Diffuser/Lens: Diffused cover, scratch and fingerprint resisitant. All pictogram inserts and surface mount and recessed options included in box
• Emergency: Maintained, Replaceable lithium iron phosphate ( LiFePO4) battery, DALI and self-test
• Installation: Suitable for both single sided and double sided applications
Recessed surface, rod and wire suspension, cantilever and wall mount
• Compliant: AS/NZS2293
• Warranty: 5 year

MADE TO ORDER OPTIONS

Black

APPLICATIONS

Recessed, surface, rod and wire suspension, cantilever and wall mount
Commercial, Schools, Retail, Hospitality, Apartments, Theatres and Cinemas

Downloads

BLADE PRO CANTILEVER & WALL MOUNT BRACKET WHITE

CODE: BLADEPROBKTWH

BLADE PRO & STINGRAY EXIT ROD MOUNT & WIRE SUSPENDED

CODE: BLADEPROSUSKITWH

BLADE PRO EXIT SIGN WHITE 24M

CODE: BLADEPROWH

System Power (W)

Lumen Output

312lm

Lumens per Watt

78lm/W

IP Rating

IP20

Lifetime

60,000hrs (L70/B50)

Dimming Technology

Non - Dimmable

Voltage

240V

Line Voltage Frequency

50Hz

Inrush Current (A)

7.12A

Inrush Current Duration (µs)

15.13μs

Line Current (A)

0.03A

Surge Protection

Yes

Electrical Rating

Class II

Earth Leakage (mA)

0.7mA

Dimensions

L405.20 x W55.20 x H243 mm

Luminaire Colour

White

Luminaire

Polycarbonate

Installation Type

Surface Mounted

Emergency Testing System

Self Test and Dali

Battery Type

LiFePO4

Battery Voltage

3.2V

Battery Cell Capacity

1100mA

Emergency AS2293 Classification

C0/C180: D40; C90/C270: D63

Viewing Distance

24m

BLADE PRO EXIT SIGN WHITE 24M DALI

CODE: BLADEPROWHDA
