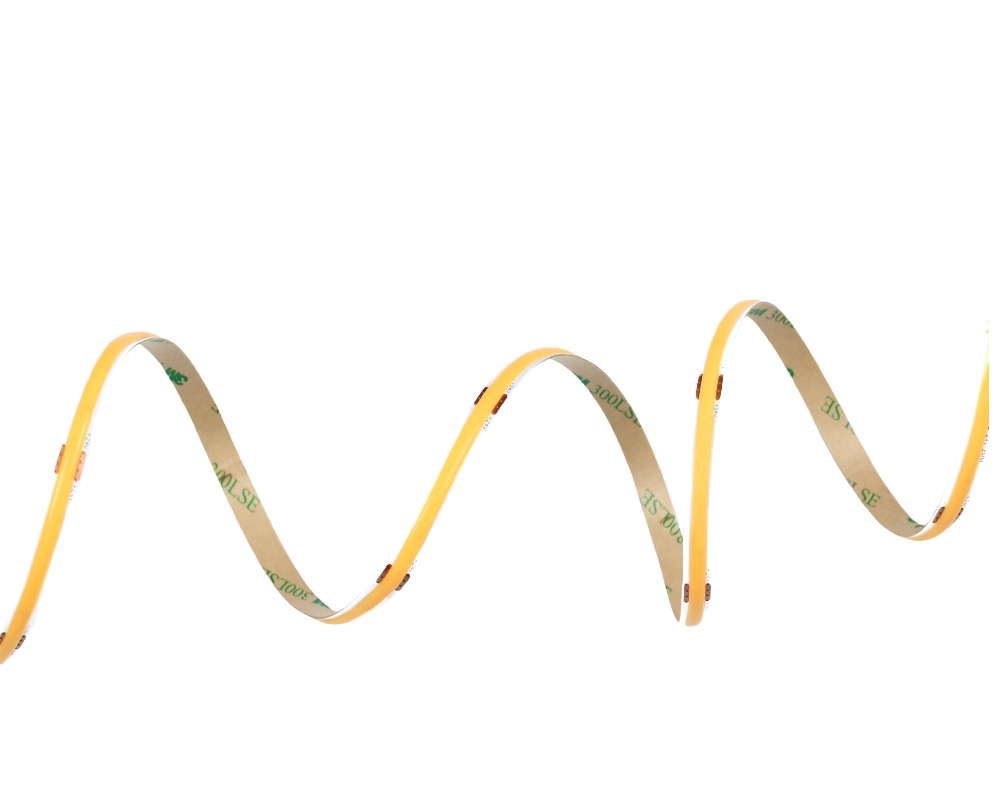

CROSSLINE LIGHT STRIP
PRODUCT FEATURES
- • Lumen maintenance: L70 50,000hrs
- • LED: Dot or Dotless version, Colour Select 3000K/4000K/6500K or Single Colour 3000K/4000K, CRI90, 4SDCM
- • Beam angle: Symmetrical
- • Driver: Remote, Non dimmable
- • Rating: IP20, Class II
- • Installation: 1.5m flex & plug, self-adhesive 3M tape on the back
- • Accessory: Complete with strip to strip connectors and optional T shape and L shape joiners
- • Warranty: 5 year
APPLICATIONS
Surface mounted (horizontal/vertical), InternalRetail, Supermarkets, Hotels, Restaurants, Offices, Residential homes
CROSSLINE COB STRIP 5M 600LM 3K CRI90 IP20 7W/M NON DIM 2P F&P & ACC
CODE: CLC05L06930I2ESystem Power (W)
35W
Lumen Output
660lm
Lumens per Watt
100lm/W
Color Temperature
3000K
Inrush Current (A)
0.5A
Inrush Current Duration (µs)
0.1μs
Line Current (A)
0.15A
Dimensions
L5000 x W10 x H1.25 mm
Installation Type
Surface Mounted
CROSSLINE COB STRIP 5M 600LM 4K CRI90 IP20 7W/M NON DIM 2P F&P & ACC
CODE: CLC05L06940I2ESystem Power (W)
35W
Lumen Output
660lm
Lumens per Watt
100lm/W
Color Temperature
4000K
Inrush Current (A)
0.5A
Inrush Current Duration (µs)
0.1μs
Line Current (A)
0.15A
Dimensions
L5000 x W10 x H1.25 mm
Installation Type
Surface Mounted
CROSSLINE COB STRIP 5M 600LM 3/4/57K CRI90 IP20 7W/M NON DIM 2P F&P & ACC
CODE: CLC05L069CSI2ESystem Power (W)
35W
Lumen Output
660lm
Lumens per Watt
100lm/W
Tuneable CCT
3000kK to 6500 K
Color Temperature
4000K
Beam Distribution
Symmetrical
Inrush Current (A)
0.5A
Inrush Current Duration (µs)
0.1μs
Line Current (A)
0.15A
Dimensions
L5000 x W10 x H1.25 mm
Installation Type
Surface Mounted
CROSSLINE LED STRIP 2M 600LM 3/4/57K 6W/M NON DIM 2P F&P & ACC
CODE: CLL02L069CSI2ESystem Power (W)
12W
Lumen Output
650lm
Lumens per Watt
100lm/W
Inrush Current (A)
0.2A
Inrush Current Duration (µs)
0.13μs
Line Current (A)
0.08A
Dimensions
L2000 x W10 x H1.25 mm
Installation Type
Surface Mounted
CROSSLINE LED STRIP 5M 600LM 3K CRI90 IP20 6W/M NON DIM 2P F&P & ACC
CODE: CLL05L06930I2ESystem Power (W)
30W
Lumen Output
650lm
Lumens per Watt
100lm/W
Color Temperature
3000K
Inrush Current (A)
0.5A
Inrush Current Duration (µs)
0.1μs
Line Current (A)
0.15A
Dimensions
L5000 x W10 x H1.25 mm
Installation Type
Surface Mounted
CROSSLINE LED STRIP 5M 600LM 4K CRI90 IP20 6W/M NON DIM 2P F&P & ACC
CODE: CLL05L06940I2ESystem Power (W)
30W
Lumen Output
650lm
Lumens per Watt
100lm/W
Color Temperature
4000K
Inrush Current (A)
0.5A
Inrush Current Duration (µs)
0.1μs
Line Current (A)
0.15A
Dimensions
L5000 x W10 x H1.25 mm
Installation Type
Surface Mounted
CROSSLINE LED STRIP 5M 600LM 3/4/57K CRI90 IP20 6W/M NON DIM 2P F&P & ACC
CODE: CLL05L069CSI2ESystem Power (W)
30W
Lumen Output
650lm
Lumens per Watt
100lm/W
Inrush Current (A)
0.5A
Inrush Current Duration (µs)
0.1μs
Line Current (A)
0.15A
Dimensions
L5000 x W10 x H1.25 mm
