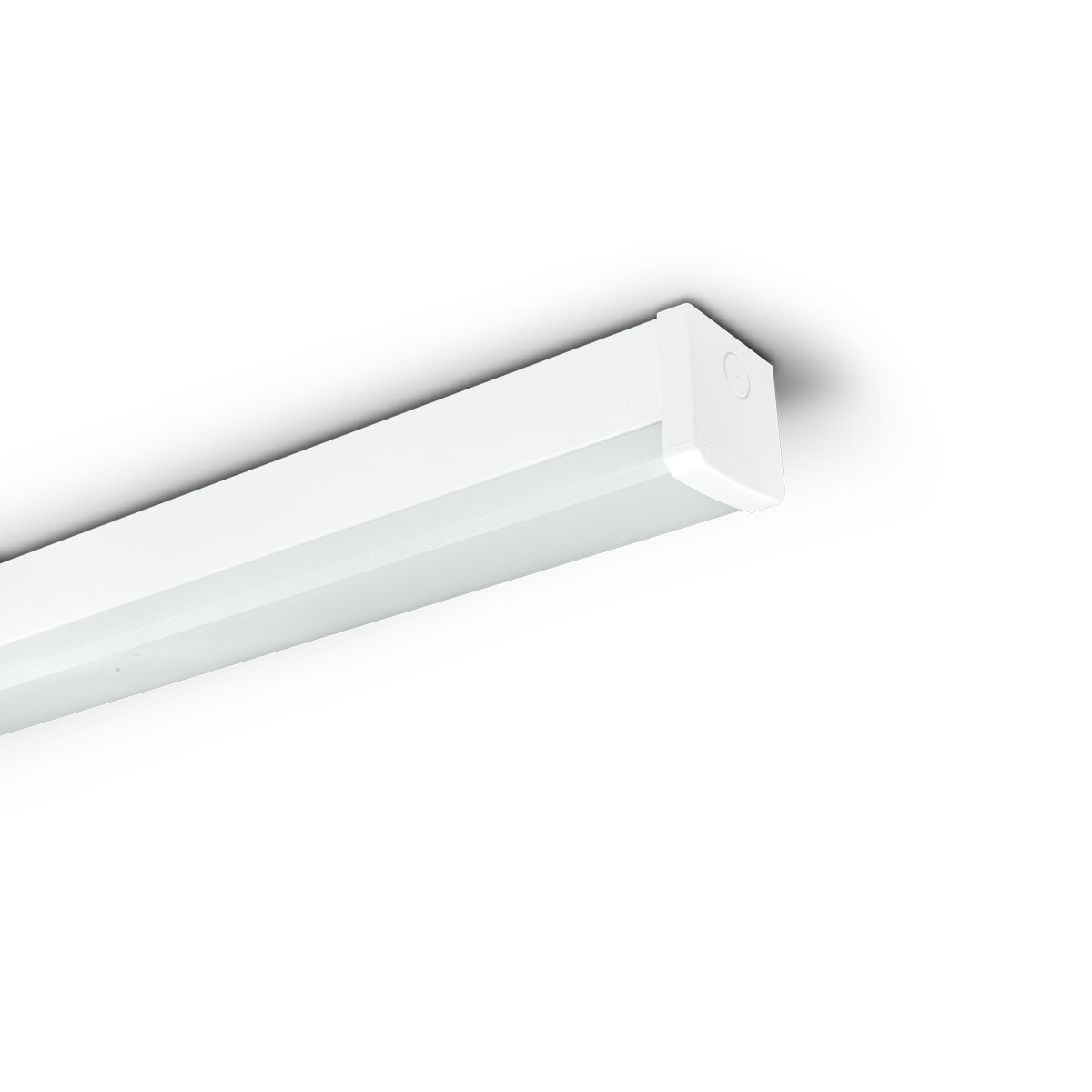

ECO SENSOR BATTEN GEN4
PRODUCT FEATURES
- • Size: 2ft/600mm, 4ft/1200mm, 5ft/1500mm
- • Lumen maintenance: L80 54,000hrs @ +40°C
- • LED: Colour Select 4000K/5000K/6500K, CRI80, 5SDCM
- • Beam angle: Symmetrical, 120°
- • Driver: Integral, Lumen Select, Non dimmable
- • Sensor: Motion and daylight sensor, adjustable settings
- • Flicker free: PstLM≤1, SVM≤0.4
- • Rating: Rating: IP20, IK06, Class I
- • Operating temperature: 0°C to +40°C
- • Housing: Steel
- • Finishing: White RAL9016, Powder coated
- • Diffuser/Lens: Polycarbonate (PC), Opal, Insect proof
- • Connection: Removable LED module with quick release clips and connector, Ø20mm for conduit
- • Center cable entry, End to end mounting
- • Warranty: 5 year
APPLICATIONS
Surface mounted (ceiling/wall) , InternalCommercial, Retail, Residential
ECO LED BATTEN GEN4 18W 2FT SENSOR COL SELECT & LUMEN SELECT NON DIM
CODE: ECOBAT202ECSLSSG4System Power (W)
18W
Lumen Output
2000lm
Lumens per Watt
111lm/W
Inrush Current (A)
14A
Inrush Current Duration (µs)
120μs
Line Current (A)
0.08A
Earth Leakage (mA)
0.7mA
Dimensions
L603 x W74 x H74 mm
Luminaire Colour
White
Luminaire
Steel (Mild)
Installation Type
Surface Mounted
ECO LED BATTEN GEN4 36W 4FT SENSOR COL SELECT & LUMEN SELECT NON DIM
CODE: ECOBAT404ECSLSSG4System Power (W)
36W
Lumen Output
4300lm
Lumens per Watt
119lm/W
Inrush Current (A)
17A
Inrush Current Duration (µs)
140μs
Line Current (A)
0.16A
Earth Leakage (mA)
0.7mA
Dimensions
L1164 x W74 x H74 mm
Luminaire Colour
White
Luminaire
Steel (Mild)
Installation Type
Surface Mounted
ECO LED BATTEN GEN4 50W 5FT SENSOR COL SELECT & LUMEN SELECT NON DIM
CODE: ECOBAT505ECSLSSG4System Power (W)
50W
Lumen Output
7100lm
Lumens per Watt
142lm/W
Inrush Current (A)
25A
Inrush Current Duration (µs)
135μs
Line Current (A)
0.22A
Earth Leakage (mA)
0.7mA
Dimensions
L1500 x W74 x H74 mm
Luminaire Colour
White
Luminaire
Steel (Mild)
Installation Type
Surface Mounted
