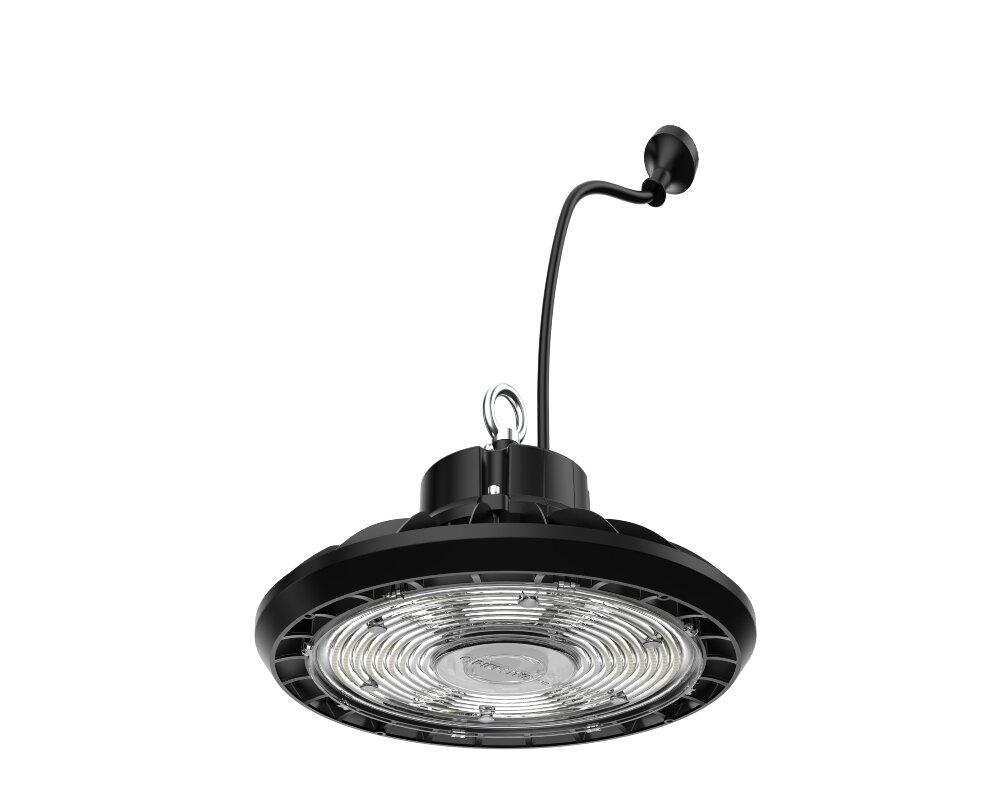

Pierlux DALI Highbay Gen3
PRODUCT FEATURES
- • Suitable for Greenstar applications with CRI>85, 4000K or 5000K, flicker free driver and DALI2 driver
- • Superior housing made of aluminium diecast, resistant to corrosion ideal for harsh conditions
- • Built with high grade polycarbonate lens to prevent tampering and glass breakage
- • Low maintenance with a long life of 54,000 hours at 50°C, 5 year warranty
- • Superior housing made of LM6 grade aluminium diecast, resistant to corrosion ideal for harsh conditions
- • Suited to installations with an ambient between -25°C and 50°C and IP rating of up to IP65
- • Built with low glare high grade polycarbonate lens to prevent tampering and glass breakage
- • Optional reflector, refractor, refractor lens, wireguard, rod surface mount kit and surface mount bracket
- • Connection: Flex & Plug, DALI cable, Safety wire
- • Order Separately: Polycarbonate refractor, Polycarbonate refractor lens, Aluminium reflector
- • Warranty: 5 year
PLHB120D4G3
CODE: PLHB120D4G3System Power (W)
120W
Lumen Output
18000lm
Lumens per Watt
150lm/W
MacAdam Steps
3SDCM
IP Rating
IP65
IK Rating
IK08
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
DALI
Voltage
240V
Line Voltage Frequency
50Hz/60Hz
Inrush Current (A)
19.6A
Inrush Current Duration (µs)
338μs
Line Current (A)
0.53A
Surge Protection
Yes
Electrical Rating
Class I
Earth Leakage (mA)
0.39mA
Dimensions
Ø210 x H165 mm
Luminaire Colour
Black
Luminaire
Aluminium
Installation Type
Suspended
PLHB120D5G3
CODE: PLHB120D5G3System Power (W)
120W
Lumen Output
18800lm
Lumens per Watt
150lm/W
MacAdam Steps
3SDCM
IP Rating
IP65
IK Rating
IK08
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
DALI
Voltage
240V
Line Voltage Frequency
50Hz/60Hz
Inrush Current (A)
19.6A
Inrush Current Duration (µs)
338μs
Line Current (A)
0.53A
Surge Protection
Yes
Electrical Rating
Class I
Earth Leakage (mA)
0.39mA
Dimensions
Ø210 x H165 mm
Luminaire Colour
Black
Luminaire
Aluminium
PLHB200D4G3
CODE: PLHB200D4G3System Power (W)
200W
Lumen Output
30000lm
Lumens per Watt
150lm/W
Color Temperature
4000K
MacAdam Steps
3SDCM
IP Rating
IP65
IK Rating
IK08
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
DALI
Voltage
240V
Line Voltage Frequency
50Hz/60Hz
Inrush Current (A)
24A
Inrush Current Duration (µs)
536μs
Line Current (A)
0.86A
Surge Protection
Yes
Electrical Rating
Class I
Earth Leakage (mA)
0.52mA
Dimensions
Ø310 x H165 mm
Luminaire Colour
Black
Luminaire
Aluminium
Installation Type
Suspended
PLHB200D5G3
CODE: PLHB200D5G3System Power (W)
200W
Lumen Output
30000lm
Lumens per Watt
150lm/W
Color Temperature
5000K
MacAdam Steps
3SDCM
IP Rating
IP65
IK Rating
IK08
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
DALI
Voltage
240V
Line Voltage Frequency
50Hz/60Hz
Inrush Current (A)
24A
Inrush Current Duration (µs)
536μs
Line Current (A)
0.86A
Surge Protection
Yes
Electrical Rating
Class I
Earth Leakage (mA)
0.52mA
Dimensions
Ø310 x H165 mm
Luminaire Colour
Black
Luminaire
Aluminium
Installation Type
Suspended
PLHB300D4415VG2
CODE: PLHB300D4415VG2System Power (W)
300W
Lumen Output
49400lm
Lumens per Watt
165lm/W
MacAdam Steps
3SDCM
IP Rating
IP65
IK Rating
IK08
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
DALI
Voltage
415V
Line Voltage Frequency
50Hz/60Hz
Inrush Current (A)
38.5A
Surge Protection
Yes
Electrical Rating
Class I
Dimensions
L380 x W380 x H223 mm
Luminaire Colour
Black
Luminaire
Aluminium
Installation Type
Suspended
PLHB300D4G2
CODE: PLHB300D4G2System Power (W)
300W
Lumen Output
49500lm
Lumens per Watt
165lm/W
MacAdam Steps
3SDCM
IP Rating
IP65
IK Rating
IK08
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
DALI
Voltage
240V
Line Voltage Frequency
50Hz/60Hz
Inrush Current (A)
22.5A
Surge Protection
Yes
Electrical Rating
Class I
Dimensions
L380 x W380 x H380 mm
Luminaire Colour
Black
Luminaire
Aluminium
Installation Type
Suspended
