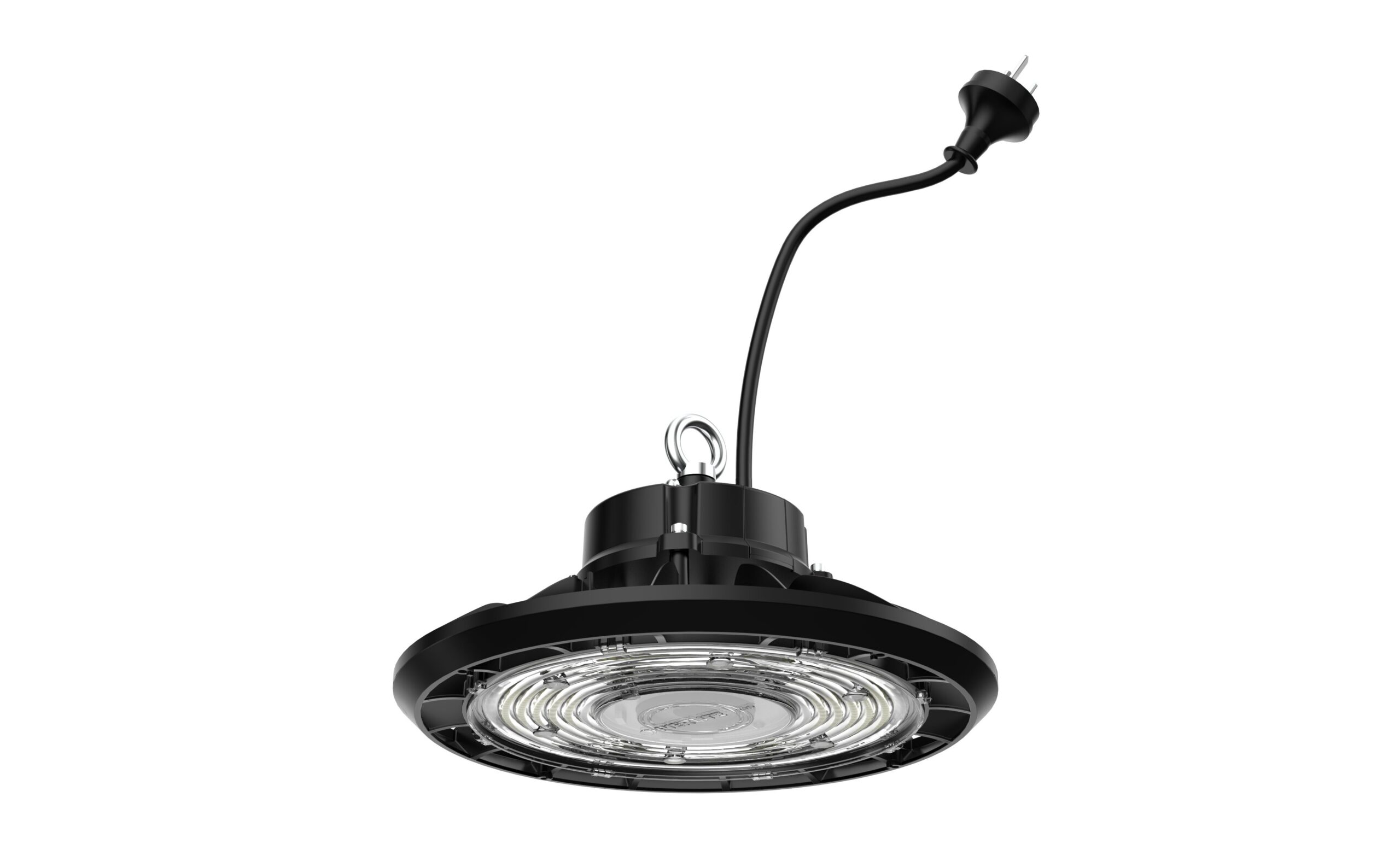

Pierlux Eco Highbay Gen8
PRODUCT FEATURES
- • Size: Ø310mm (200W), Ø270mm (120W)
- • Lumen maintenance: L70/B10 54,000hrs
- • LED: Colour Select 4000K/5000K, CRI85, 3SDCM
- • Beam angle: Symmetrical, 90°
- • Glare control: Improved optical design for better glare control
- • Driver: Integral, Lumen Select, Non dimmable, Flicker free
- • Surge protection: 6kV/3kA
- • Rating: IP65, IK08, Class I
- • Operating temperature: -40°C to +50°C
- • Housing: Aluminium
- • Finishing: Black, Powder coated
- • Diffuser/Lens: Polycarbonate (PC), Clear, Ribbed
- • Connection: 1.7m Flex & Plug
- • Accessory: Optional Surface mount bracket, Rod mount bracket
- Polycarbonate refractor, Polycarbonate refractor lens, Aluminium reflector, Wire guard, Motion sens
- • Warranty: 5 year
APPLICATIONS
Suspended/Surface mounted (ceiling), Internal/ExternalWarehousing, Industrial facilities, Workshops, Retail environments, Cold storage, Sports facilities
ECOHB120LSUCSG8
CODE: ECOHB120LSUCSG8System Power (W)
120W
Lumens per Watt
18100lm/W
MacAdam Steps
3SDCM
IP Rating
IP65
IK Rating
IK08
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
Non - Dimmable
Voltage
240V
Line Voltage Frequency
50Hz/60Hz
Inrush Current (A)
19A
Inrush Current Duration (µs)
350μs
Line Current (A)
0.53A
Surge Protection
Yes
Electrical Rating
Class I
Earth Leakage (mA)
0.45mA
Dimensions
Ø270 x H153 mm
Luminaire Colour
Black
Luminaire
Aluminium (Die Cast)
Installation Type
Suspended
ECOHB200LSUCSG8
CODE: ECOHB200LSUCSG8System Power (W)
200W
Lumens per Watt
30600lm/W
MacAdam Steps
3SDCM
IP Rating
IP65
IK Rating
IK08
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
Non - Dimmable
Voltage
240V
Line Voltage Frequency
50Hz/60Hz
Inrush Current (A)
24A
Inrush Current Duration (µs)
350μs
Line Current (A)
0.83A
Surge Protection
Yes
Electrical Rating
Class I
Earth Leakage (mA)
0.52mA
Dimensions
Ø270 x H153 mm
Luminaire Colour
Black
Luminaire
Aluminium (Die Cast)
Installation Type
Suspended
HIGHBAY SENSOR DAYLIGHT & MOTION DETECTION
CODE: ECOHBSFHFIP Rating
IP65
Voltage
240V
Mass (kg)
0.25kg
Sensor Technology Type
Microwave
Major Motion Detection Range
10m
Minor Motion Detection Range
6m
ECO HB ALUMINIUM REFLECTOR T/S 120 & 200W
CODE: HBALREFLECO HB BRACKET T/S 120 & 200W
CODE: HBBRKTHIGHBAY GRIPPLE SUSPENSION KIT – PURLIN BRACKET 2 METRE HANGER C/W 214 GAUGE & SCREWS
CODE: HBGRIP2MKITECO HB REFRACTOR LENS USE WITH HBPCREFR
CODE: HBPCLENSECO HB PC REFRACTOR T/S 120 & 200W
CODE: HBPCREFRECO HB SURFACE BRACKET T/S 120 & 200W
CODE: HBRODBRKTECO HB 120 & 200W WIRE GUARD
CODE: HBWGHIGHBAY SENSOR REMOTE CONTROL
CODE: PRC11Mass (kg)
0.1kg
