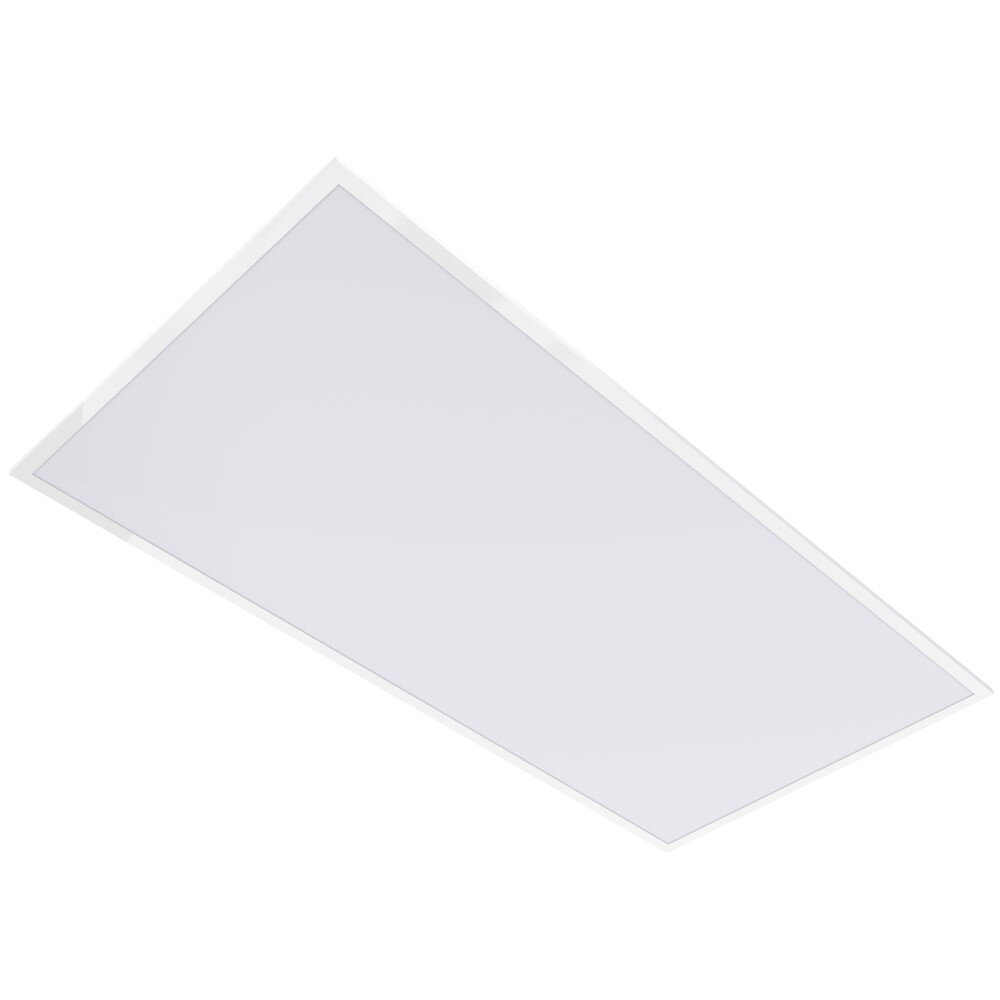

SLENDER ACADEMY PANEL GEN2
PRODUCT FEATURES
- • Size: 1200x600mm, 1200x300mm, 600x600mm, 600x300mm
- • Lumen maintenance: L80 102,000hrs (TM21 reported @ 40°C)
- • LED: 4000K, CRI90 (R9≥80), 3SDCM
- • Beam angle: Symmetrical, 90°
- • Glare control: UGR19 design
- • Driver: Remote, Lumen Select, DALI-2, 100,000hrs driver life
- • Flicker free: PstLM≤1.00, SVM≤0.04
- • Rating: IP44, IK04, Class ll, IC-4 (panel only)
- • Operating temperature: 0°C to +40°C
- • Housing: Aluminium trim, Steel back plate
- • Finishing: White RAL9003, Powder coated
- • Diffuser/Lens: Polycarbonate (PC), Micro prismatic
- • Connection: 1.2m Flex & Plug, 0.4m DALI quick connect
- • Accessory: Complete with restraint/suspension hooks, Optional wire suspension kit
- • Compliant: Cyanosis (COI 1.77)
- • Warranty: 5 year
APPLICATIONS
Recessed (grid ceiling)InternSchools, Offices, Waiting-rooms, Commercial interiors
SLA06349K19D2G2
CODE: SLA06349K19D2G2System Power (W)
20W
Lumen Output
1800lm
Lumens per Watt
120lm/W
Color Temperature
4000K
UGR
19
MacAdam Steps
3SDCM
IP Rating
IP44
IK Rating
IK04
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
DALI
Voltage
240V
Line Voltage Frequency
50Hz
Inrush Current (A)
9.96A
Inrush Current Duration (µs)
221μs
Line Current (A)
0.08A
Surge Protection
Yes
Electrical Rating
Class II
Earth Leakage (mA)
0.7mA
Dimensions
L593.50 x W293.50 x H32 mm
Luminaire Colour
White
Luminaire
Polycarbonate
Installation Type
Recessed
SLA06649K19D8G2
CODE: SLA06649K19D8G2System Power (W)
34W
Lumen Output
3550lm
Lumens per Watt
122lm/W
Color Temperature
4000K
UGR
19
MacAdam Steps
3SDCM
IP Rating
IP44
IK Rating
IK04
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
DALI
Voltage
240V
Line Voltage Frequency
50Hz
Inrush Current (A)
12.6A
Inrush Current Duration (µs)
264μs
Line Current (A)
0.13A
Surge Protection
Yes
Electrical Rating
Class II
Earth Leakage (mA)
0.7mA
Dimensions
L593.50 x W593.50 x H32 mm
Luminaire Colour
White
Luminaire
Polycarbonate
Installation Type
Recessed
SLA12349K19D8G2
CODE: SLA12349K19D8G2System Power (W)
34W
Lumen Output
3550lm
Lumens per Watt
122lm/W
Color Temperature
4000K
UGR
19
MacAdam Steps
3SDCM
IP Rating
IP44
IK Rating
IK04
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
DALI
Voltage
240V
Line Voltage Frequency
50Hz
Inrush Current (A)
12.6A
Inrush Current Duration (µs)
264μs
Line Current (A)
0.13A
Surge Protection
Yes
Electrical Rating
Class II
Earth Leakage (mA)
0.7mA
Dimensions
L1193.50 x W293.50 x H34 mm
Luminaire Colour
White
Luminaire
Polycarbonate
Installation Type
Recessed
SLENDER ACADEMY 1200X600 4000K DALI DIM
CODE: SLA12649K19D3G2System Power (W)
46W
Lumen Output
6000lm
Lumens per Watt
122lm/W
Color Temperature
4000K
UGR
19
MacAdam Steps
3SDCM
IP Rating
IP44
IK Rating
IK04
Beam Distribution
Symmetrical
Beam Angle
90°
Dimming Technology
DALI
Voltage
240V
Line Voltage Frequency
50Hz
Inrush Current (A)
15.64A
Inrush Current Duration (µs)
3891μs
Line Current (A)
22A
Surge Protection
Yes
Electrical Rating
Class II
Earth Leakage (mA)
0.7mA
Dimensions
L1193.50 x W593.50 x H36 mm
Luminaire Colour
White
Luminaire
Aluminium
Installation Type
Recessed
