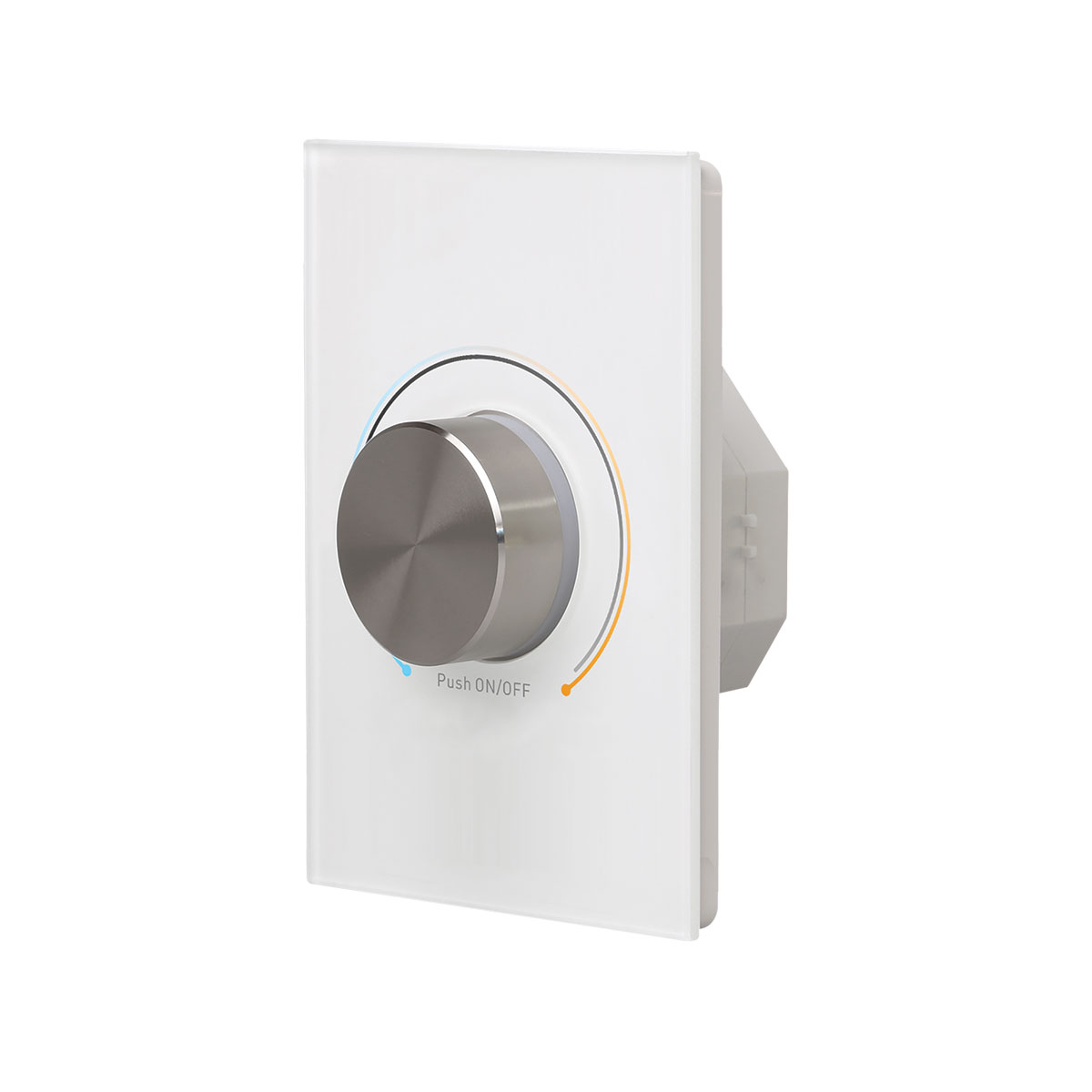

DALI Wall Plate Dimmer

PRODUCT FEATURES

  • Simple on/off switching and dimming control for DALI light fixtures
  • Configurable minimum brightness setting
  • Colour temperature control (requires DGDALIDM8 model and DALI Type 8 LED drivers)
  • Up to four DALI Wall Plate Dimmers can be connected in parallel on a DALI Line for multi‚Äźpoint control
  • Built in 125mA DALI power supply (mains connection required)
  • Able to control up to 50 DALI drivers on a single DALI line
  • Only mains connection (active and neutral) and DALI connection (DA/DA) required
  • Can be powered by external DALI power supply connected to DALI line (no mains connection required)
  • No external DALI power supply or other equipment is required
  • No programming of the device or DALI drivers is required
  • Warranty: 2 year

APPLICATIONS

Wall mount, Internal
Commercial offices, Meeting rooms, Board rooms, Executive offices, School classrooms, Hospital wards
Dimming Technology
DALI
Minimum Recess Depth
35mm
Dimming Technology
DALI8
